By Jim McMahon, Edited by Mike Santora

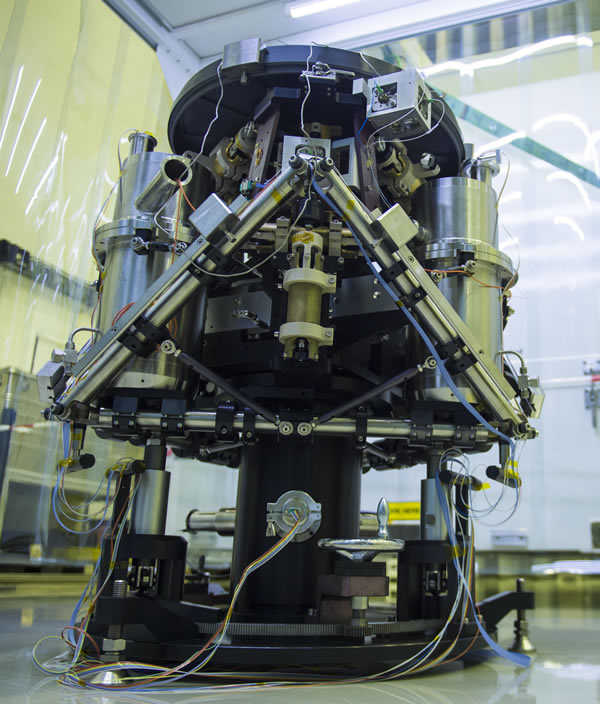

Vibration Micro Isolation Platform ERA-European Space Agency Satellite Testing Image-1
European Space Agency's micro-vibration test platform. | National Physical Laboratory

The European Space Agency (ESA) has added a micro-vibration test instrument, developed by the National Physical Laboratory (NPL), to its satellite testing facilities. NPL is the UK's National Measurement Institute, developing and maintaining the national primary measurement standards. The instrument measures vibrations generated by satellite subsystems to quantify their effects on images and measurements made from space. This facility is the result of five years of collaboration between NPL and ESA.

Vibrations onboard a satellite can be caused by common instruments and mechanisms, such as spinning reaction wheels, solar array drives, and rotating cryocoolers. ESA needed to be able to measure and correct for these jitters and vibrations to improve the accuracy of its Earth observations. This required the simulation of satellite components under a range of controlled vibration conditions.

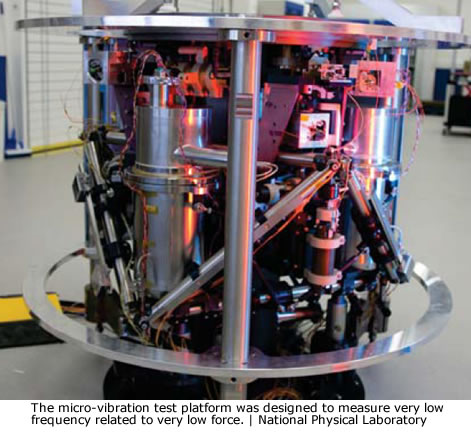

"The NPL won a tender to design a system for the European Space Agency, which required a very high level of performance," said Dan Veal, Senior Research Scientist with the National Physical Laboratory in the United Kingdom. "The system was required to measure very low frequency related to very low force. ESA needed a better way to check satellite components for these micro-vibrations, and to what effect they might disrupt a spacecraft."

Measurement Platform Supported by a Vibration Isolation Platform
"NPL developed a platform which can characterize any force produced by a satellite component weighing up to 150 pounds," added Veal.

The micro-vibration platform can measure vibrations to an unprecedented degree of accuracy. It is so sensitive it can measure the force of a single dropped feather. Sometimes housed in a vacuum chamber to simulate space conditions, when used in air, the system is enclosed in a tent to limit perturbations caused by airflow.

The platform is built as a structure of two main levels: 1) a lower vibration isolation platform to cancel disturbances coming from the ground, and 2) an upper measurement platform.

Lower Vibration Isolation Platform
The lower vibration isolation platform uses a passive Negative-Stiffness vibration isolator, coupled with three highly sensitive active seismometers that control actuators, to sense ground vibrations coming into the system. The seismometers are designed to measure up to 0.3 hertz. Coupled with the Negative-Stiffness isolators, the passive/active system enables vibration isolation down to 0.1 Hz. This system significantly reduces the effects of the vibration coming from sources, such as footsteps even waves from the nearby North Sea, ensuring a quiet environment for the measurement platform that is mated on top.

"We developed the lower vibration isolation platform around Minus K's Negative-Stiffness isolators because they are capable of passively isolating vibrations down to 0.5 Hz," explained Veal. "This was very important for our low-frequency application. But we also selected Negative-Stiffness because it is vacuum compatible."

"Essentially, we stripped the Negative-Stiffness isolators down to their core systems, then augmented them with active seismometers connected with a custom interface," explained Veal. "This enabled us to get down to 0.1 Hz isolation."

Vibration Micro Isolation Platform ERA-European Space Agency Satellite Testing Image-1

Negative-Stiffness vibration isolation was developed by Minus K Technology, an OEM supplier to manufacturers of scanning probe microscopes, micro-hardness testers, and other vibration-sensitive instruments and equipment, such as for testing zero-g simulation of spacecraft. These vibration isolators are compact and do not require electricity or compressed air, enabling sensitive instruments to be located wherever a production facility or laboratory needs to be. There are no motors, pumps, or chambers, and no maintenance because there is nothing to wear out. They operate purely in a passive mechanical mode.

What is very advantageous about Negative-Stiffness isolators is that they achieve a high level of isolation in multiple directions. These isolators have the flexibility of custom tailoring resonant frequencies to 0.5 Hz* vertically and horizontally (with some versions at 1.5 Hz horizontally). (*Note that for an isolation system with a 0.5 Hz natural frequency, isolation begins at 0.7 Hz and improves with increased vibration frequency. The natural frequency is more commonly used to describe the system performance.)

"Vertical-motion isolation is provided by a stiff spring that supports a weight load, combined with a Negative-Stiffness mechanism," said Erik Runge, Vice President of Engineering at Minus K Technology. "The net vertical stiffness is made very low without affecting the static load-supporting capability of the spring. Beam columns connected in series with the vertical-motion isolator provide horizontal-motion isolation. A beam column behaves as a spring combined with a negative-stiffness mechanism. The result is a compact passive isolator capable of low vertical and horizontal natural frequencies and high internal structural frequencies."

Negative-Stiffness isolators deliver very high performance, as measured by a transmissibility curve. Vibration
transmissibility is a measure of the vibrations that are transmitted through the isolator relative to the input vibrations. Negative-Stiffness isolators, when adjusted to 0.5 Hz, achieve approximately 93% isolation efficiency at 2 Hz; 99% at 5 Hz; and 99.7% at 10 Hz.

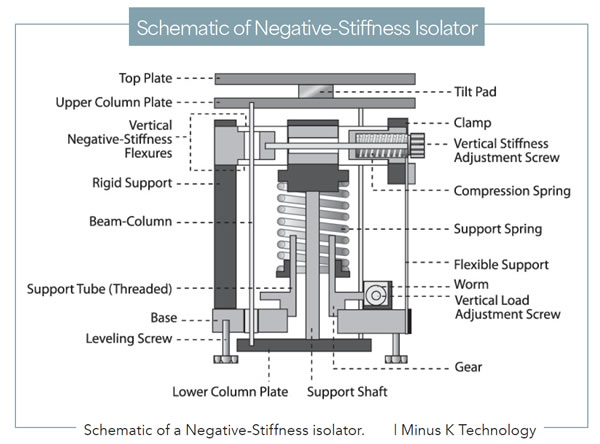

Negative Stiffness Vibration Isolator Schematic by MinusKUpper Measurement Platform

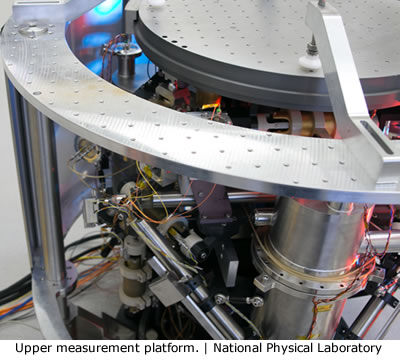

Resting on top of the lower vibration isolation platform is the upper measurement platform. This platform allows for two modes of operation:
1. It can measure the forces and torques exerted by a specimen mounted on the test table to a micronewton scale.
2. It actively produces and directs a predefined micro-vibration disturbance in multiple axes simultaneously onto a specimen to test its susceptibility to such disturbances.

"Components and subsystems can be mounted on the platform and tested before the satellite is assembled and launched into space," said Veal. "This is very important because the platform simulates what the satellite will experience from its components in space by generating small, controlled forces and torques to shake satellite instruments and components in six degrees of freedom (6DoF)."

Vibration Micro Isolation Platform ERA-European Space Agency Satellite Testing Image-4For the level of precision needed for the upper platform, NPL custom-designed and manufactured many of the system's components to strict requirements. This included such devices as actuators, which were custom-designed for magnet size, windings, coils, and linearity.

Validating Micro-Vibration

Measurement of Satellite Components The micro-vibration test instrument gives the ESA confidence that a satellite's mechanisms in space will generate verified forces and torque as displayed and confirmed on the micro-vibration test instrument on Earth. ESA and its contracted manufacturers, rely on exact specifications as developed, verified, and standardized by NPL research acquired from the micro-vibration test instrument. Critical to vibration test instrument. Critical to the success of this project has been Negative-Stiffness vibration isolation.

Contact: Minus K Technology, Inc., 460 Hindry Avenue, Unit C, Inglewood, CA 90301, 310-348-9656 E-mail: request@minusk.com Web: www.minusk.com
