Custom Vibration Isolation Systems
Minus K engineers can design a variety of custom vibration
isolation systems. Frequently these are modifications of other
designs such as changing the load capacity of an SM-1 isolator,
or the capacity, size and isolator locations on a FP-1 Platform.
Some other custom modifications and capabilities include:
- Different vertical, horizontal or tilt stiffness in an isolator
- Different vertical, horizontal or tilt damping in an isolator
- Vacuum compatibility
- Mildly magnetic
- Heavy load capacities (Six 10,000 lb isolators for NASA's James Webb Space Telescope Ground Testing)
- Large displacements
- Large temperature variations
- Compact systems (e.g., a seven-inch cubic 1/2 Hz isolator for a 700 lb payload; a six-inch diameter by 4-inches tall 1/2 Hz vibration isolation platform for a 3 lb payload.)
- Vertical auto-adjust feature to automatically adjust for change in payload weight.
- Lock-unlock feature implemented manually with a switch or automatically with signals, from a stage motion control system, for example.
 |
||

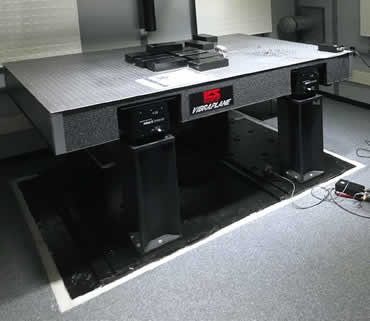

Custom table-top with four resessed Minus K CM-1s and pedestals |
 |
 |
|

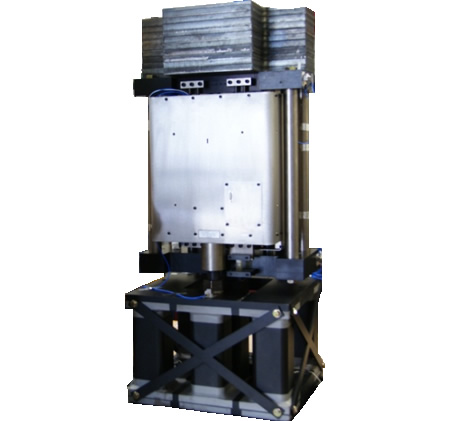

Six Minus K custom 10,000 lb. to support the ground testing process of the James Webb Space Telescope (JWST) |
JWST ground testing within the Johnson Space Center Vacuum Chamber A rendering |
